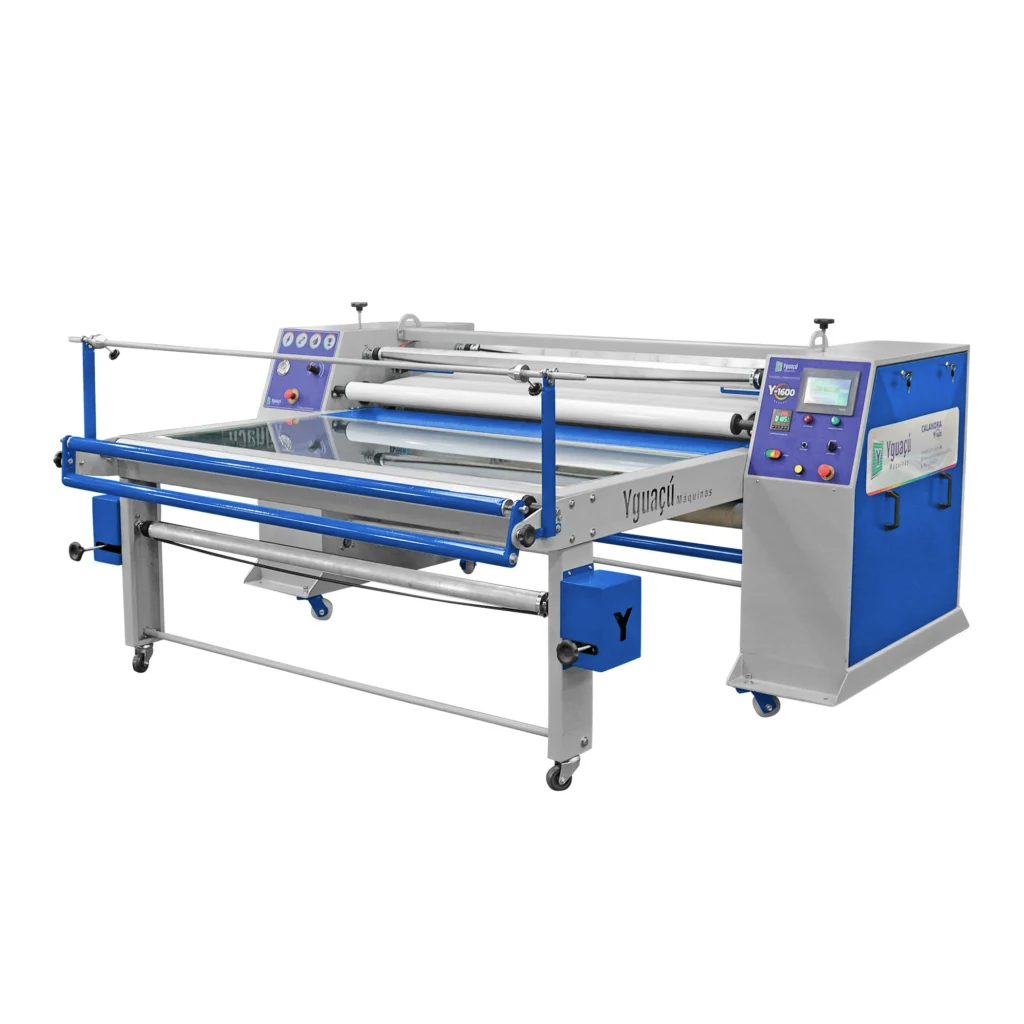

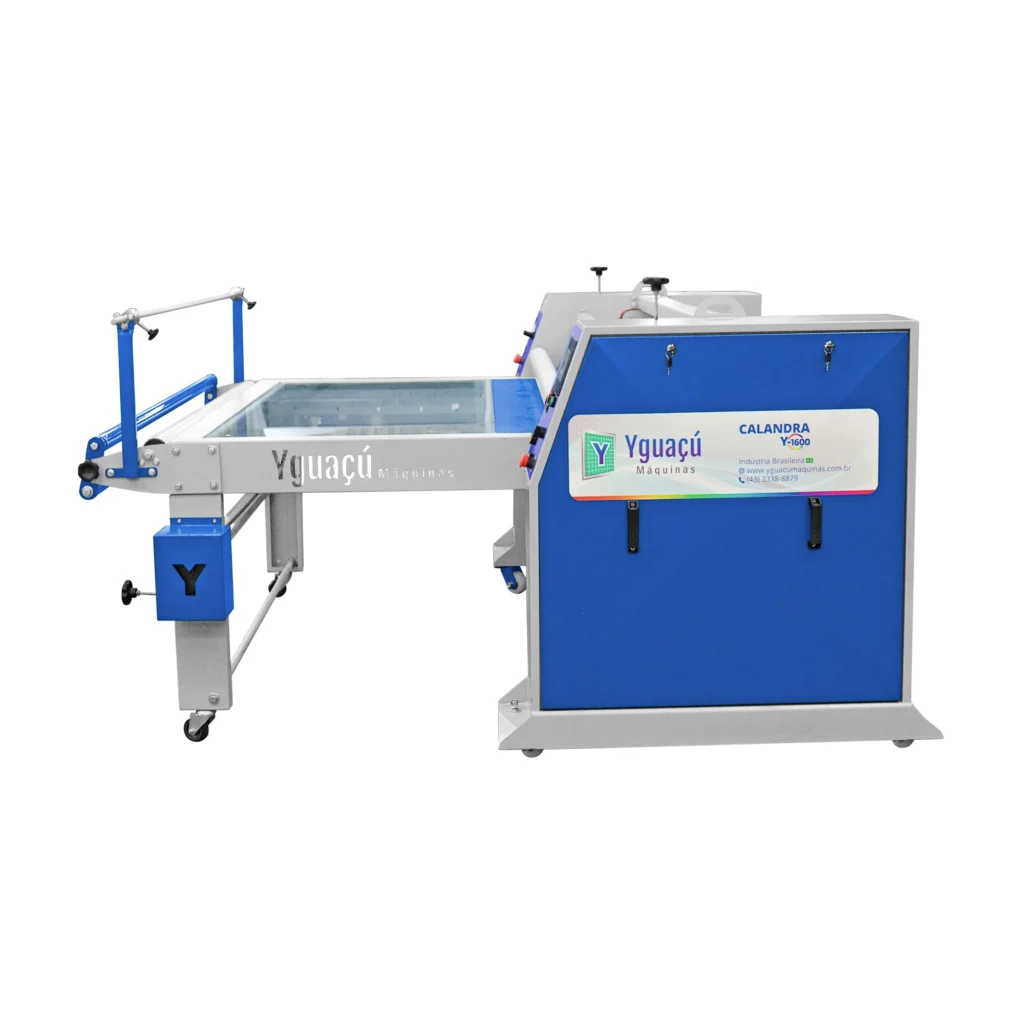

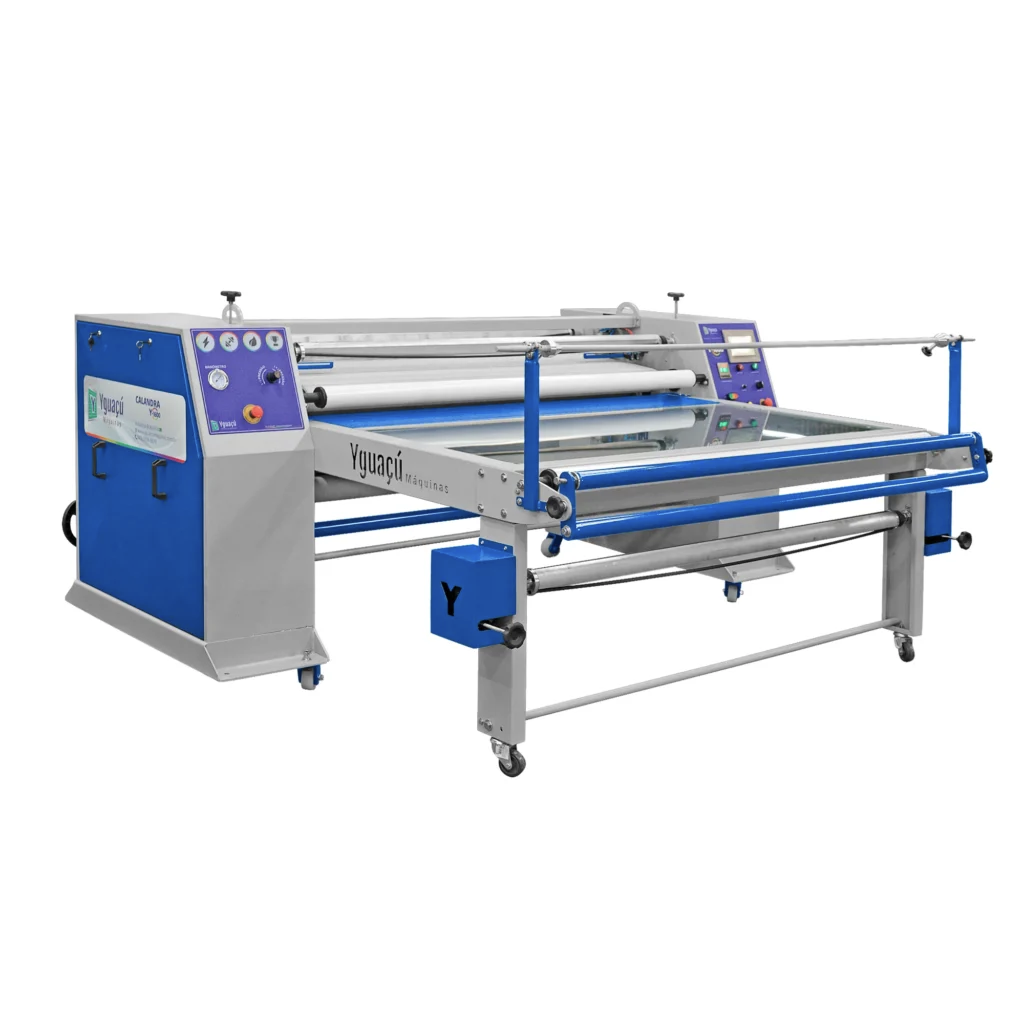

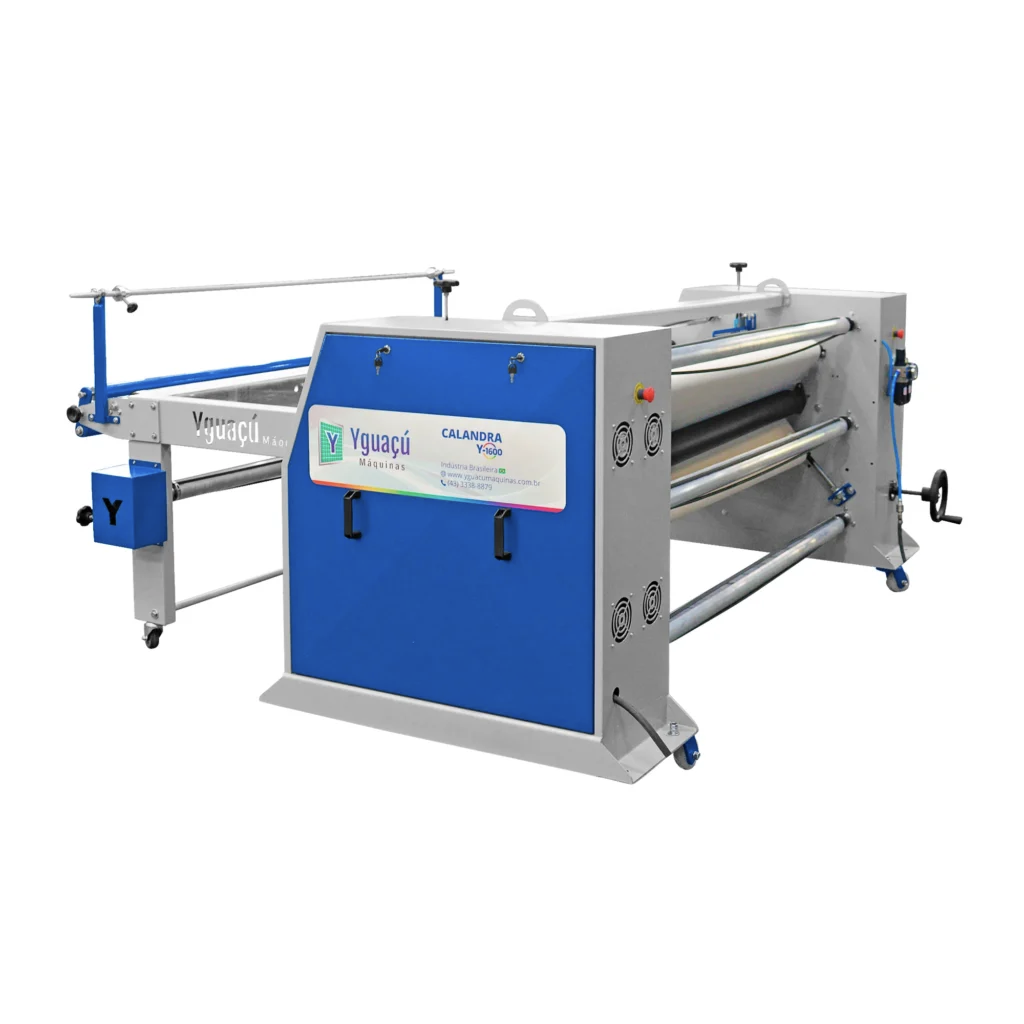

Thermal Calendar Model Y-1600 with 280mm Cylinder
The Y1600 Robust Calendar is a robust and high-performance pneumatic machine designed to withstand intensive operations and ensure very high productivity in sublimation processes on cut pieces. With a large-diameter chrome-plated cylinder and advanced thermal system, it delivers uniform results, high-quality heating, and easy control. Equipped with a touchscreen display, automatic preheating programmer, and programmed shut-off, it simplifies and makes the operator’s daily work safer.
Main Features

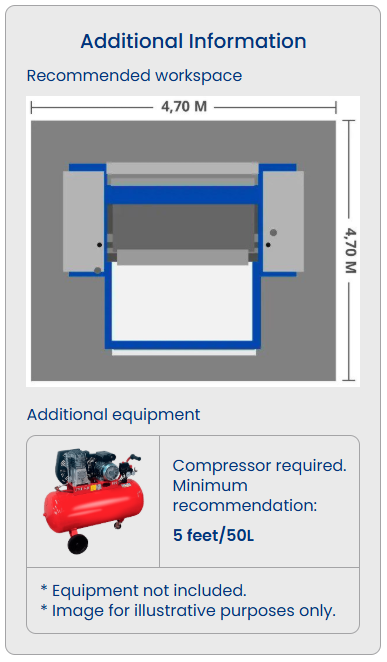

- Type of operation: Pneumatic (requires compressor – not included with the equipment)
- Usable area: 160 cm wide
- Chrome-plated cylinder: 280 mm in diameter
- Heating: Resistors immersed in thermal oil for uniformity and efficiency.
- Display: Touch screen for advanced parameter control.
- Automatic preheating: Programmer for optimized initial heating.
- Automatic shut-off: Safety with programmable temperature.
